Realization: 04/2020 – 02/2021
Place: Vodňanská drůbež, a.s., Vodňany, Czech Republic

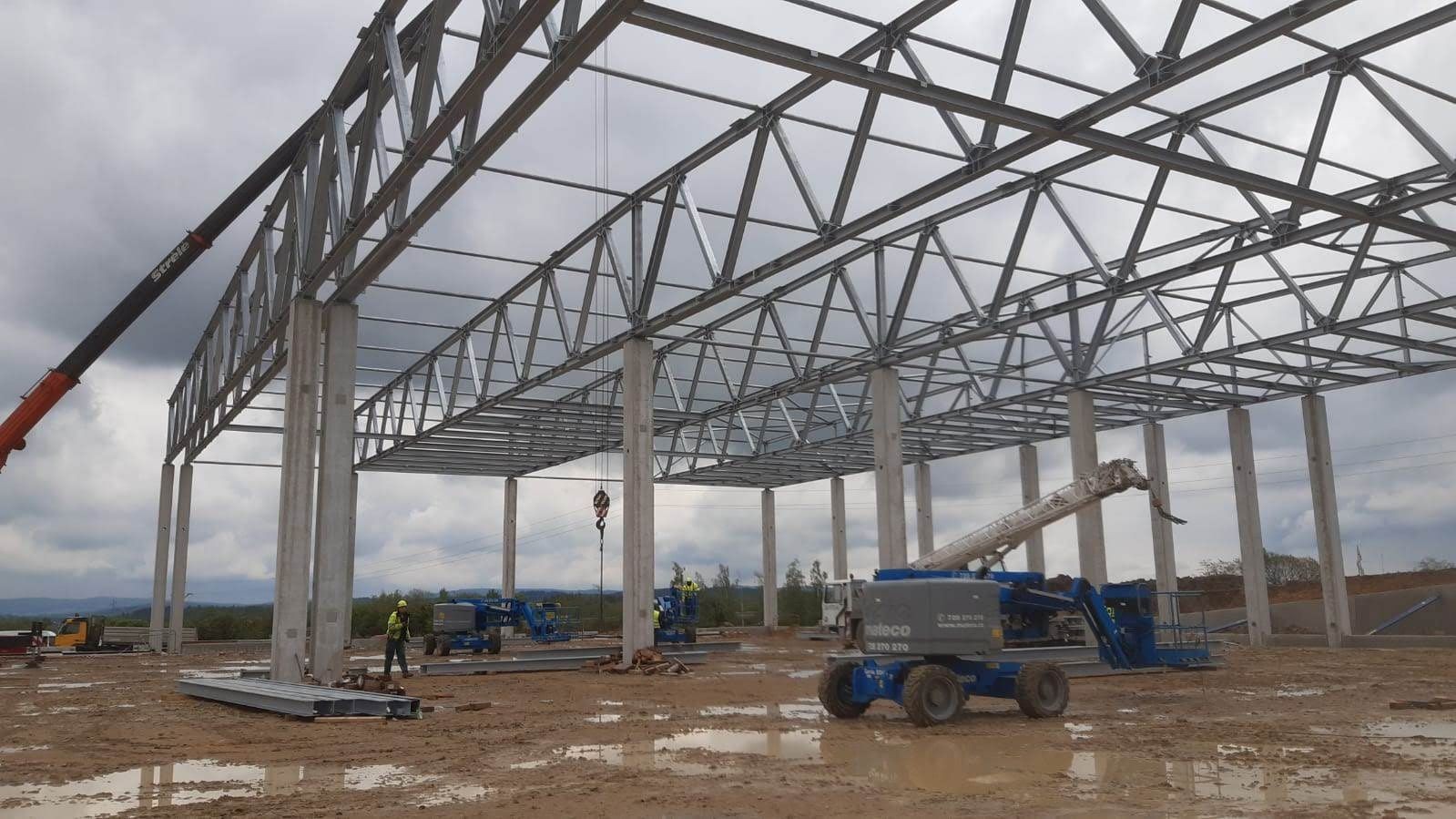

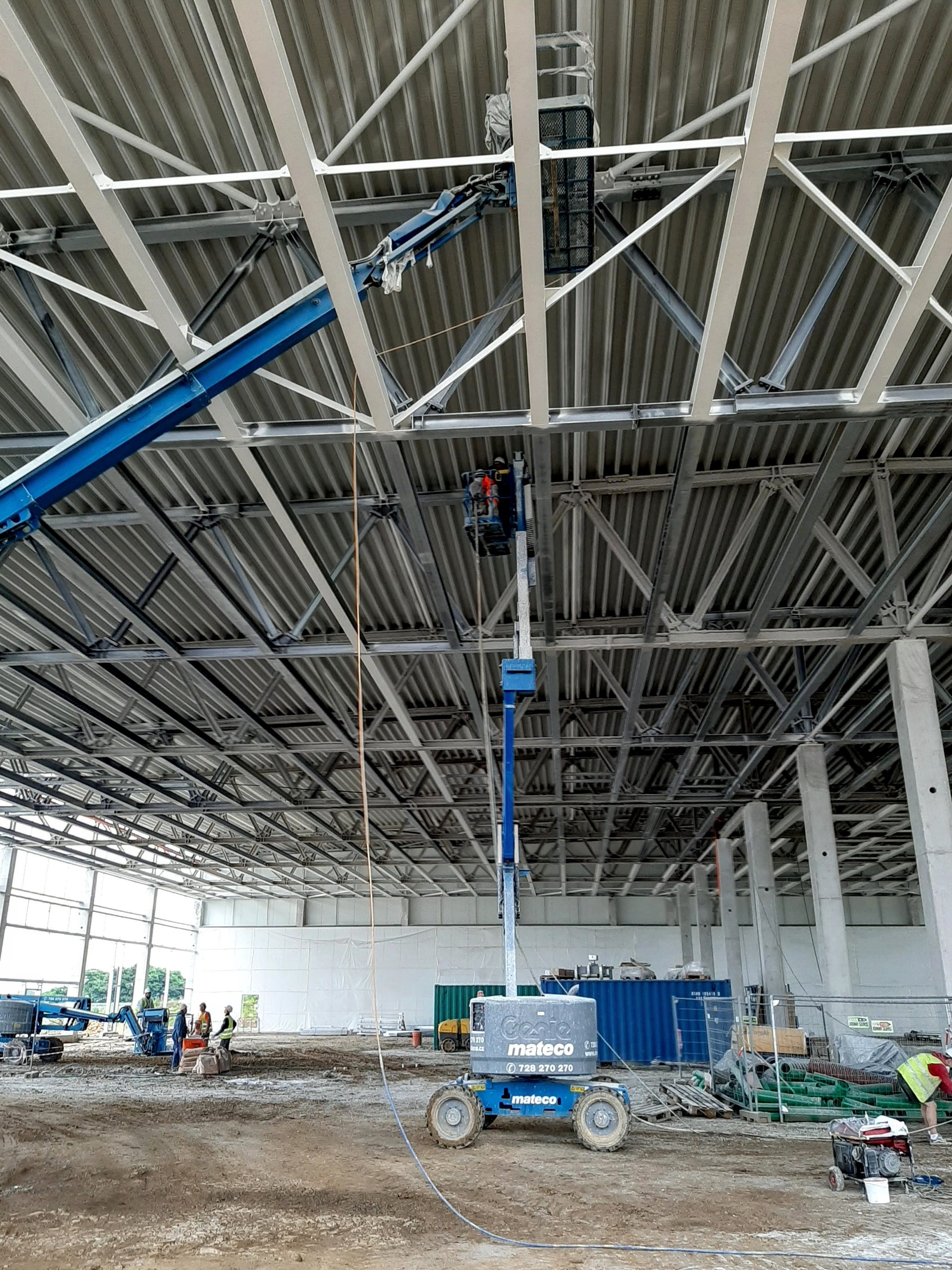

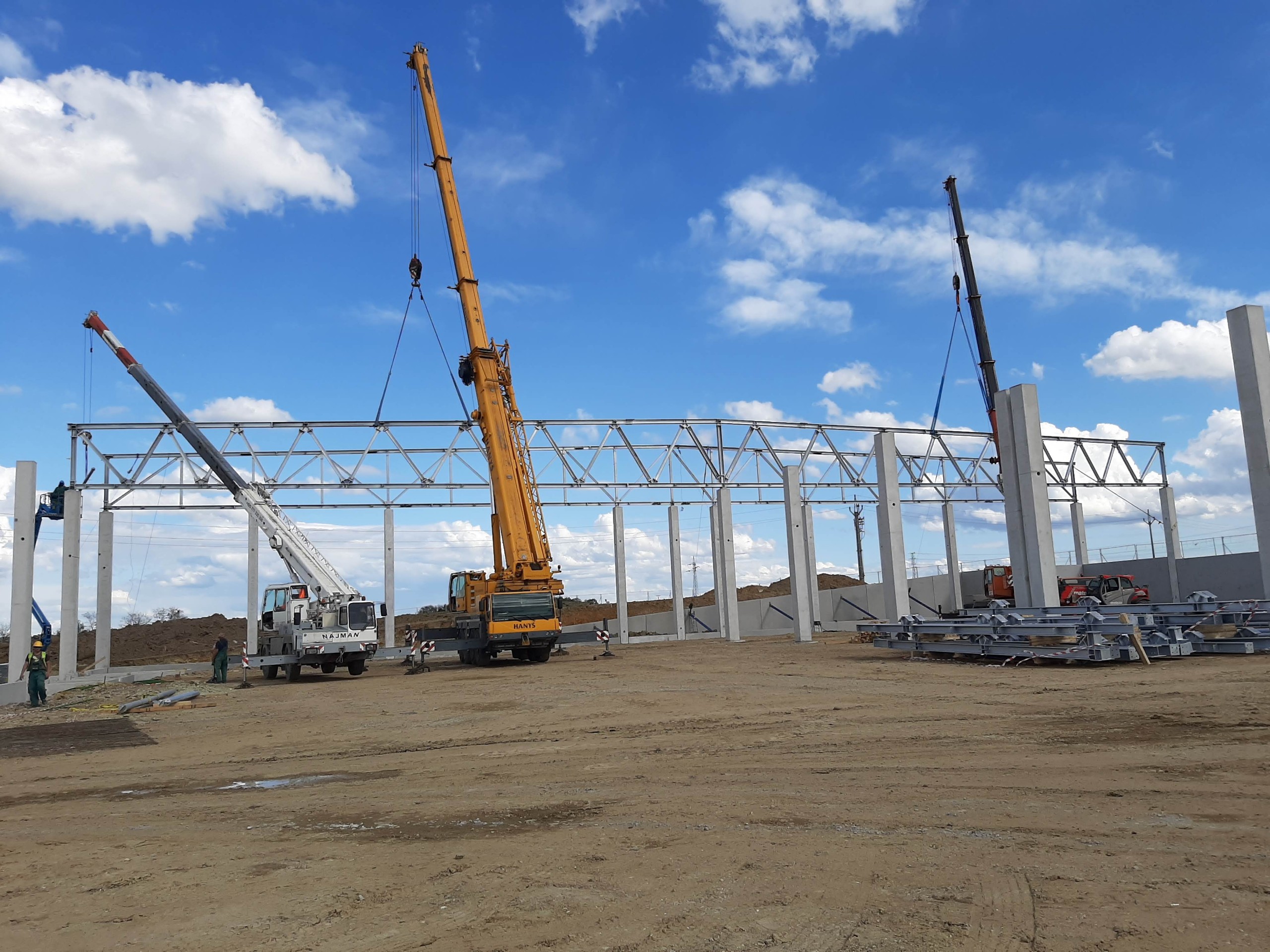

The purpose of the project was to construct a part of a new steel hall for poultry processing. The project was divided into 2 phases - installation of the supporting steel structure and subsequently the installation of a structure for the building envelope. Dimensions of the constructed part of the hall are 66 m x 68 m and its height is 12.5 m. The building consists of steel trusses welded to the heads of the reinforced concrete columns. Upper chords of individual trusses are interconnected with a system of stiffeners which ensure the stability of the hall. Lower chords are connected by a grid of rolled profiles serving as a support for the freezer panels cladding substructure. The structure for the building envelope consists of rolled steel elements and thinwalled steel profiles. The elements were anchored into the reinforced concrete columns using drilled anchors.
Removal and installation of the steel structure (approx. 352 tons).
Removal and installation of the steel structure for building envelope (approx. 60 tons)
