Reconstruction of the Slovany Plzeň Depot, Slovanská alej 35

Realization

04/2021 – 08/2022

Description

Place:
Slovany Depot, Slovanská alej 35, Plzeň 2 – Slovany, Czech Republic

Description:

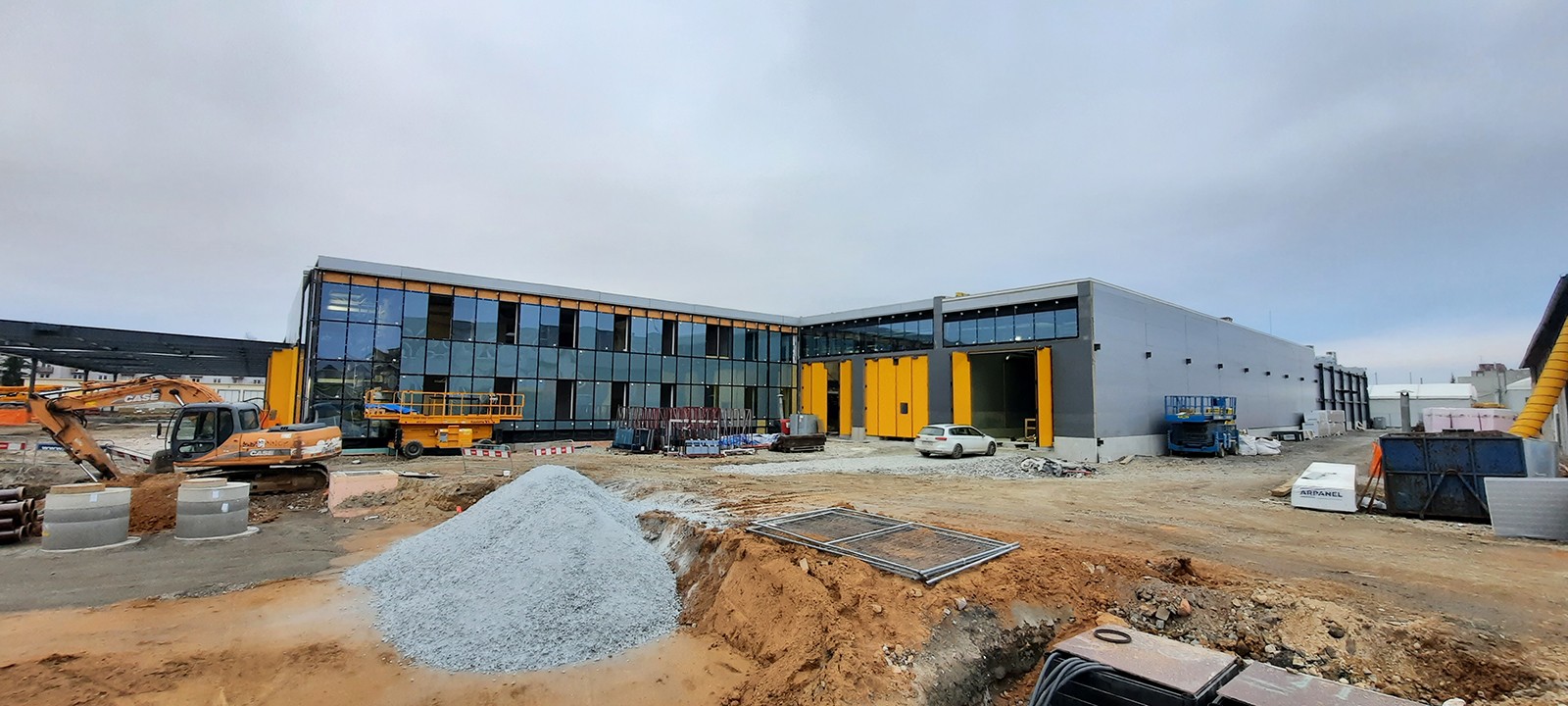

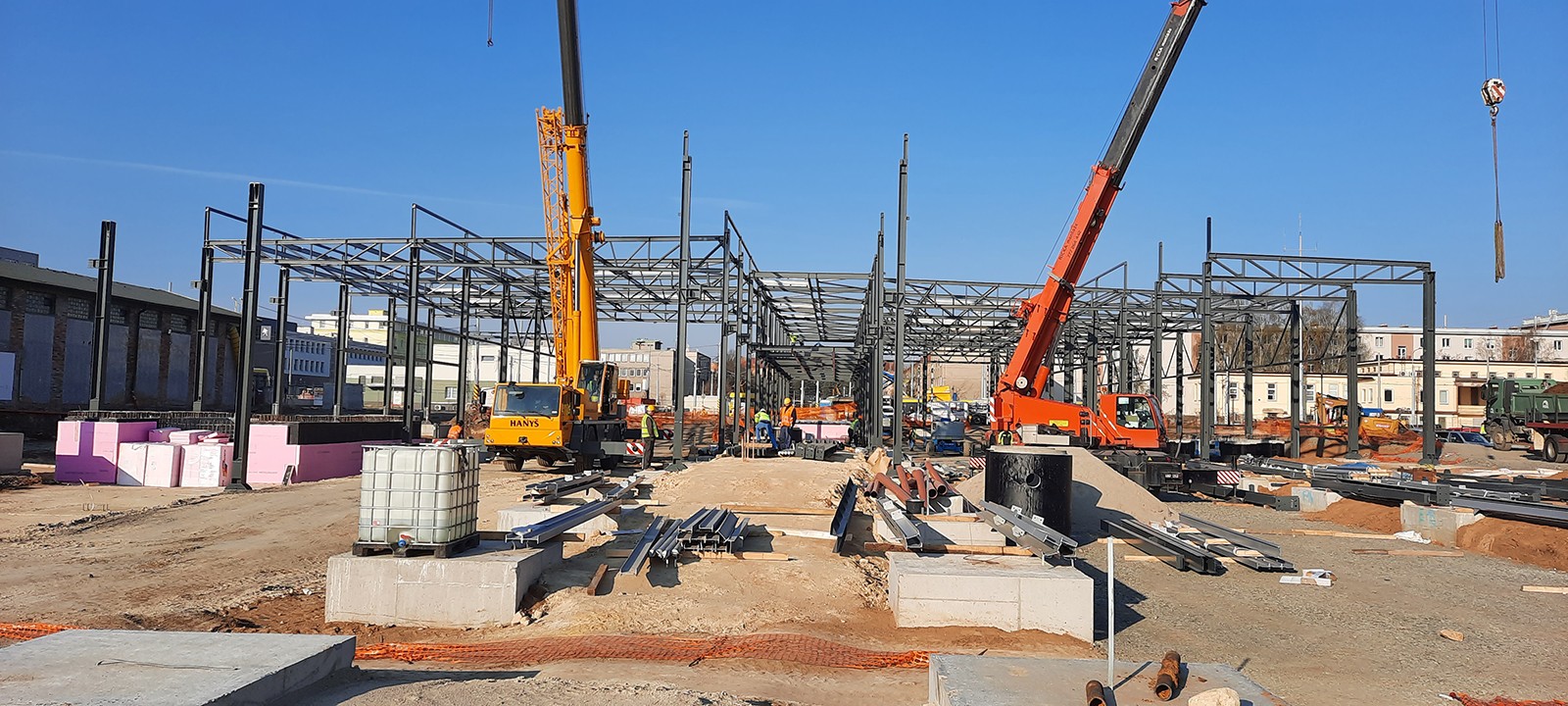

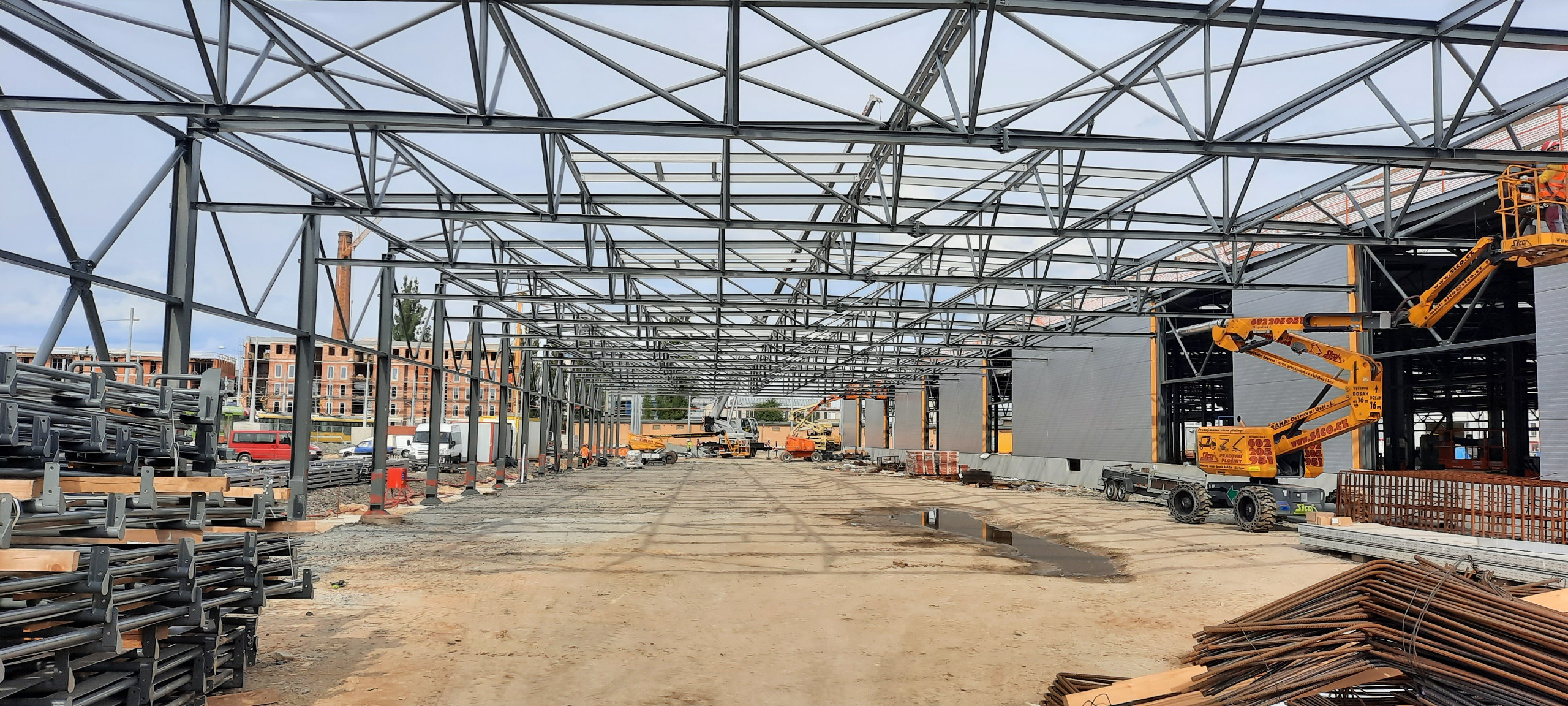

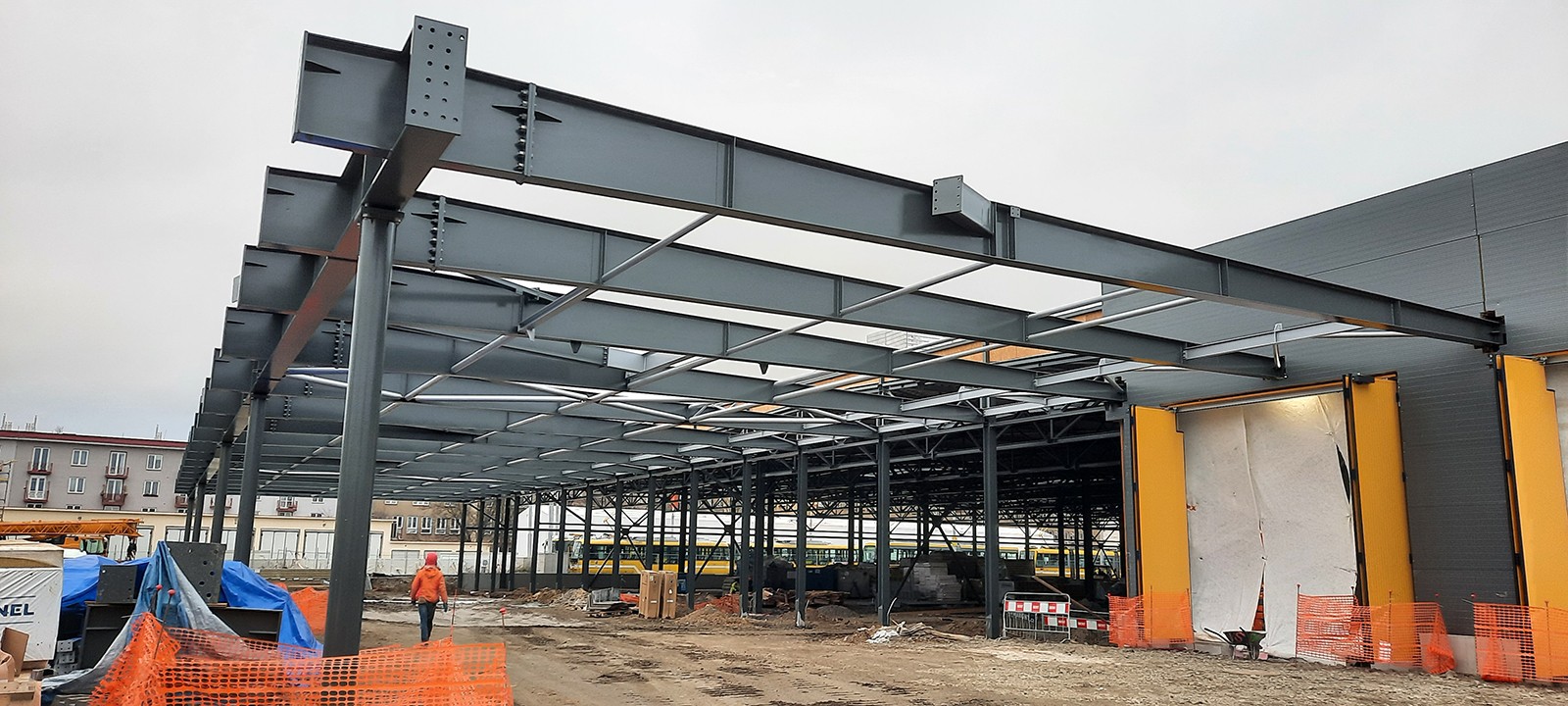

The project comprises a new set of adjacent and interconnected halls, consisting of a load-bearing steel structure. The hall is being built on the site of the demolished existing depot hall. The structure forms part of the reconstructed Slovany depot area. The halls are divided into three buildings, which are further subdivided into parts according to their operations and use.

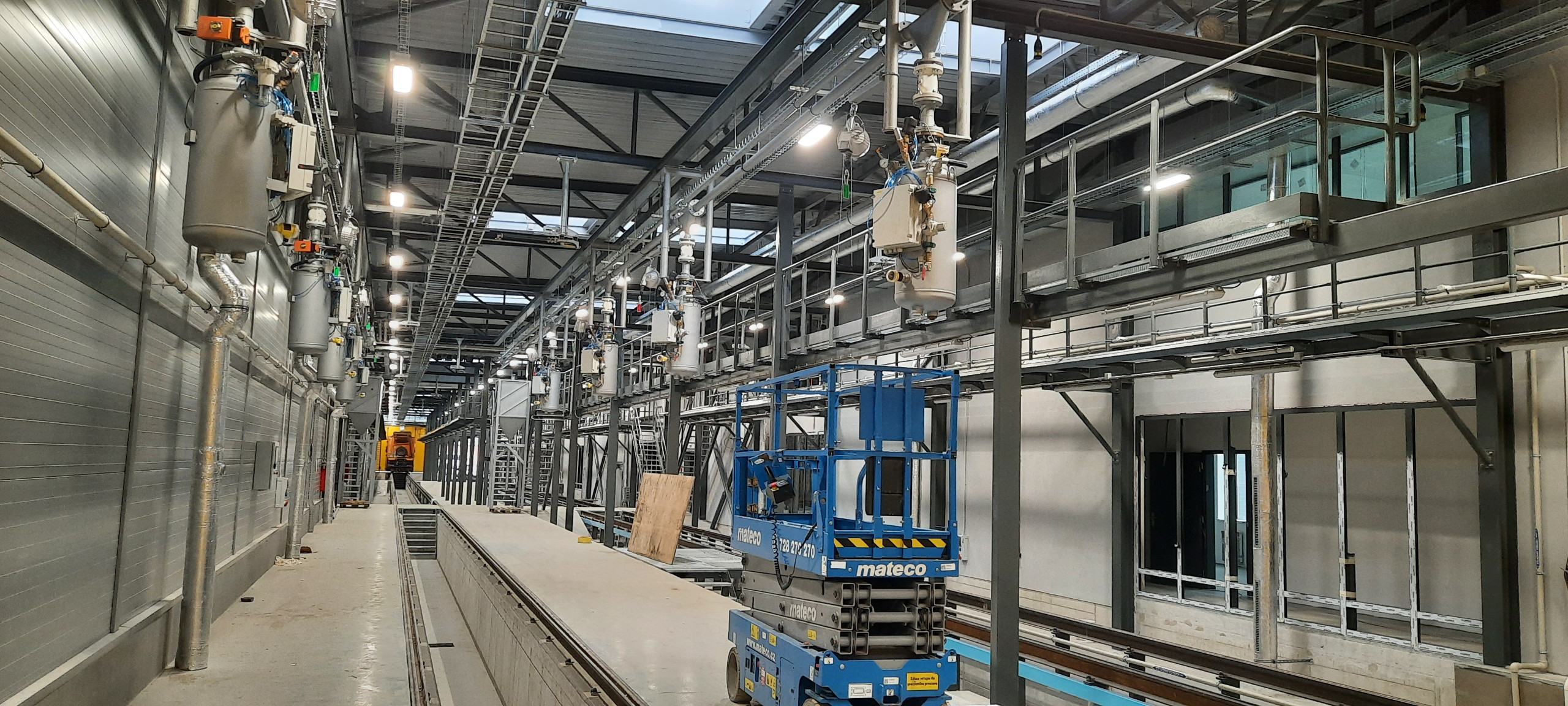

The steel structure includes inspection gangways, the extent of which is based on the requirements of the operating technology.

Access to the gangways is possible over a steel staircase. The gangways comprise a tipping part towards the track to reduce the gap between the car and the gangway.

The steel structures include steel columns supporting the rails in the service channels.

The longitudinal axial distance of the columns is 1.45 m and they are anchored into the reinforced concrete floor slab.



Structural objects:

SO VST 01/2: Railway buildings

• Removal and installation of the steel structure
• Shop documentation for the steel structure
• Weight of the steel structure: approximately 100.0 tons



SO VST 05/2: Gatehouse building

• Removal and installation of the steel structure
• Shop documentation for the steel structure
• Weight of the steel structure: approximately 2.0 tons



SO OUT 02/2: Maintenance and repair halls

• Removal and installation of the steel structure
• Shop documentation for the steel structure
• Steel structure of the service gangways
• Steel structure of posts under the rails
• Weight of the steel structure: approximately 385.0 tons



SO ODT 03/2: Carriage halls

• Removal and installation of the steel structure
• Shop documentation for the steel structure
• Weight of the steel structure: approximately 650.0 tons



SO PAB 04/1: Operational - administrative building

• Removal and installation of the steel structure
• Shop documentation for the steel structure
• Supporting steel structure of the light envelope – system of columns and crossbars
• Steel structure for HVAC technology and noise enclosure
• Weight of the steel structure: approximately 15.0 tons



Total weight: approximately 1,152 tons.
