Realization
2018
Description
Place:
Pustevny, Czech Republic
Description:
EXCON has carried out detail design pair of suspension foot bridge, with approximately span of 2x 70m. The main structure of the suspension bridge is designed with four main ropes. Upper pair of ropes is considered to be railing. The bottom pair of ropes is connected with welded crossbeams. On the cross beams is installed wooden surface. Top ropes and bottom ropes are connected with thinner connection ropes.
Detail design, workshop drawings, erection instruction

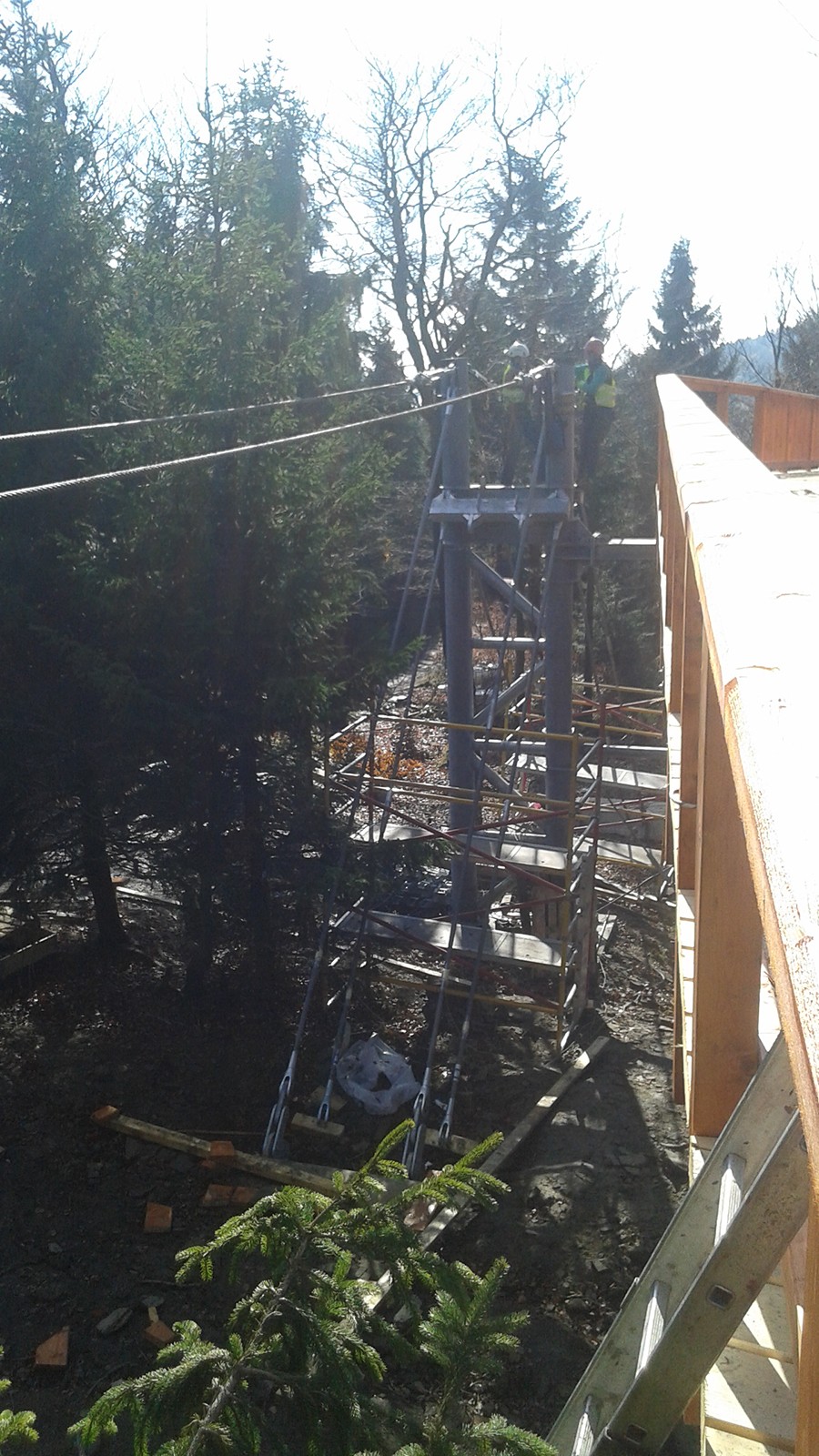

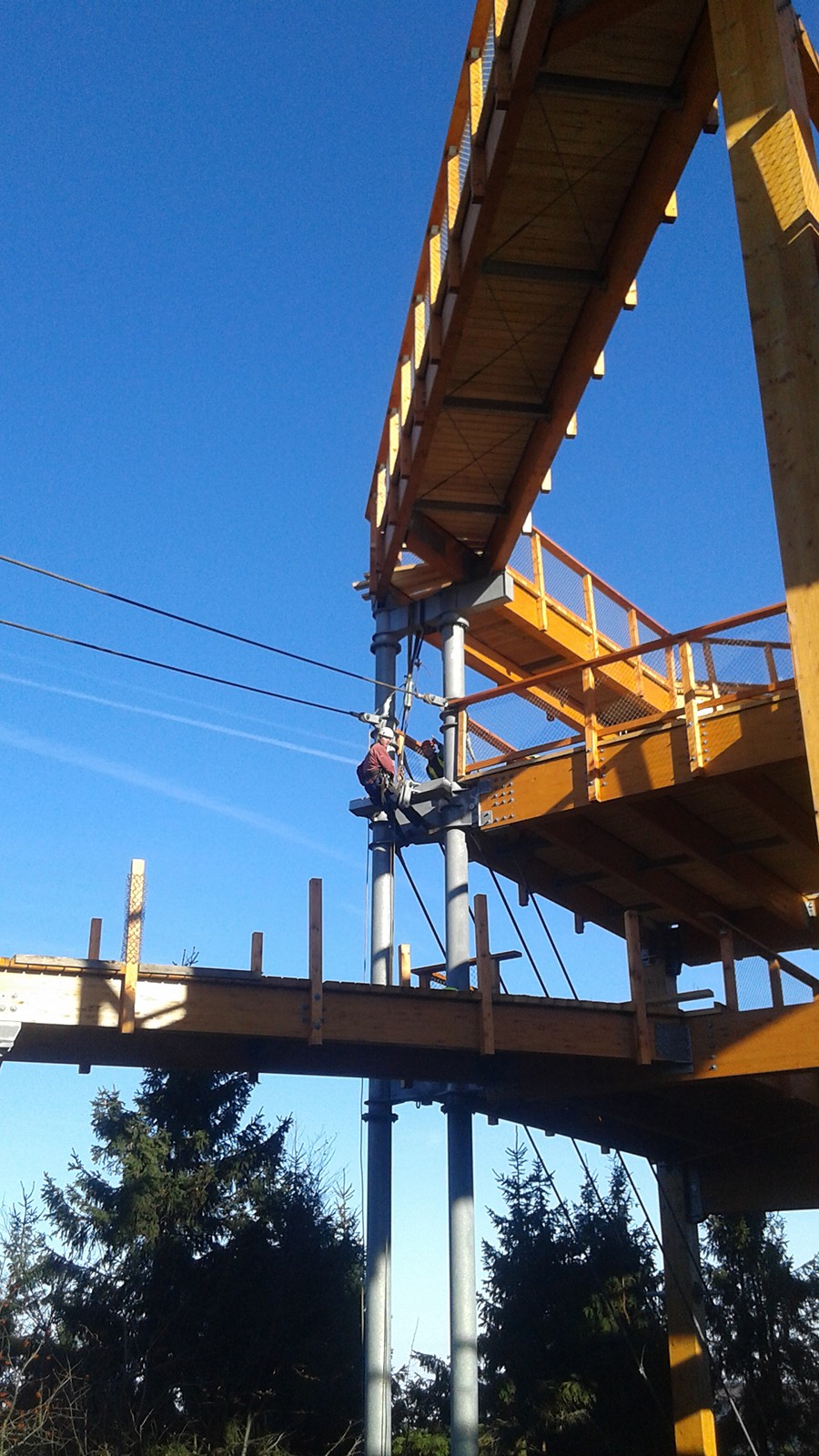

Fabrication and erection of suspension foot bridge, including pre-stressing of main ropes and measuring of dynamic characteristic of the structure
