Realization
2013-2014
Description
Realization: 12/2013 – 02/2014
Place: Newcastle Works, located in the northern part of South Africa’s Kwa-ZuluNatal Province.
Category of construction:
Technology Description:

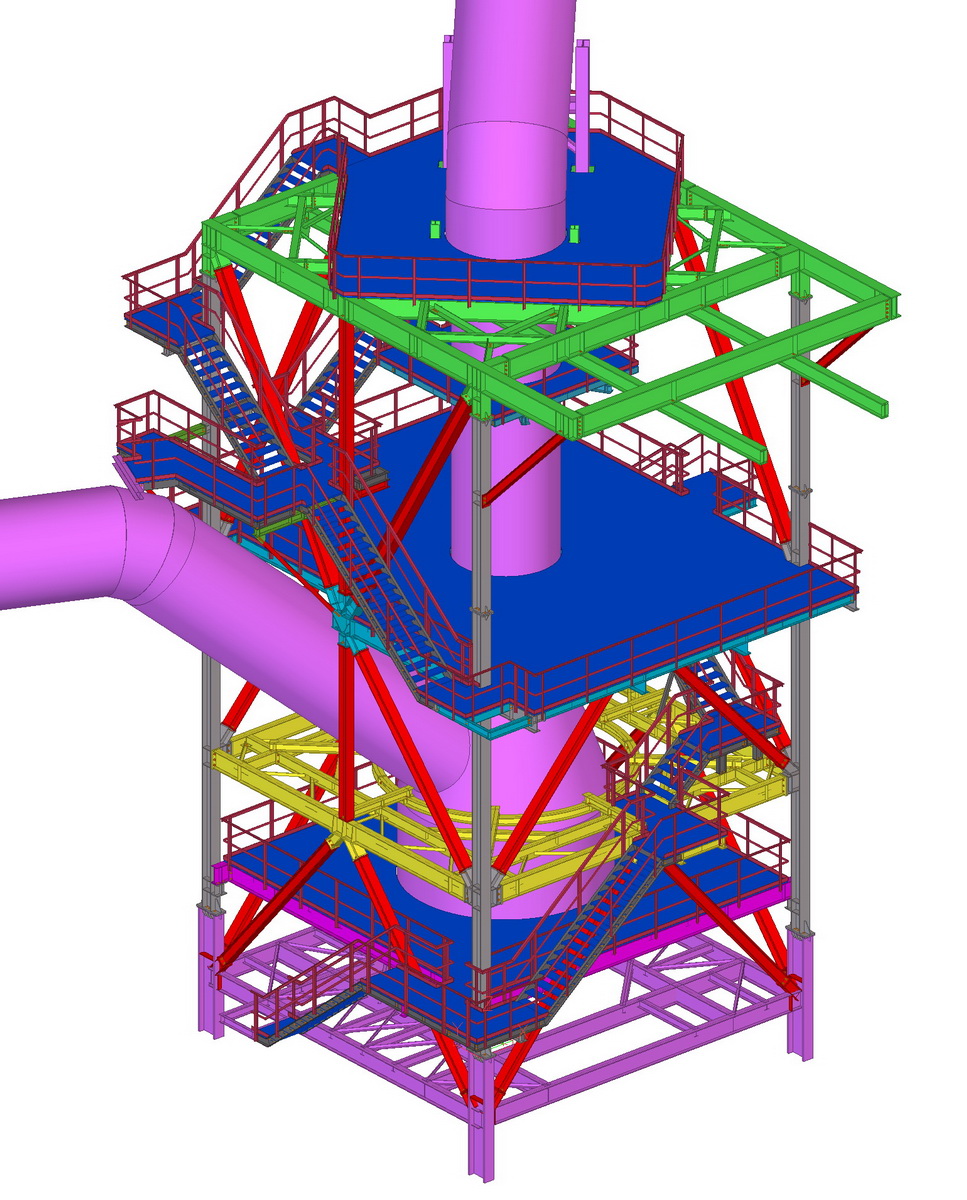

• New steel structure on the top of blast furnace tower. The Steelworks structure is designed for three construction levels. The first construction level was designed for the new Tangential Cyclone with connection to the existing steel structure. The second construction level was designed for the new Tangential Cyclone, but in this case connected to the future Scrubber. The third construction level is designed for an Axial Cyclone with connection to the future Scrubber and for a Downcomer support on top of the steel structure.
• Workshop 3D model and workshop drawings of steel constructions Engineering flue gas turbines
• Steel construction exported into the PDMS format, which served to coordinate the General designer steel construction and technology
