Realization
2020
Description
Realization:
2020
Place:
Unipetrol RPA, s.r.o. Litvínov
Description:

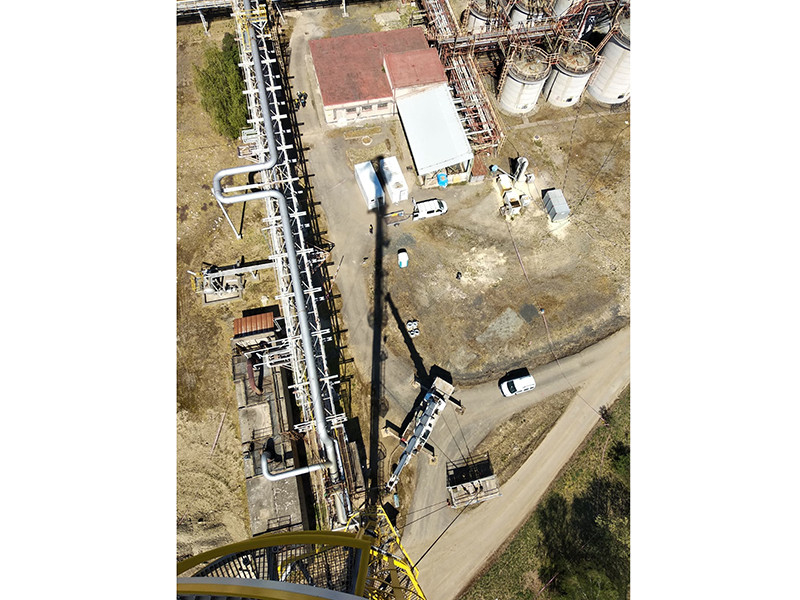

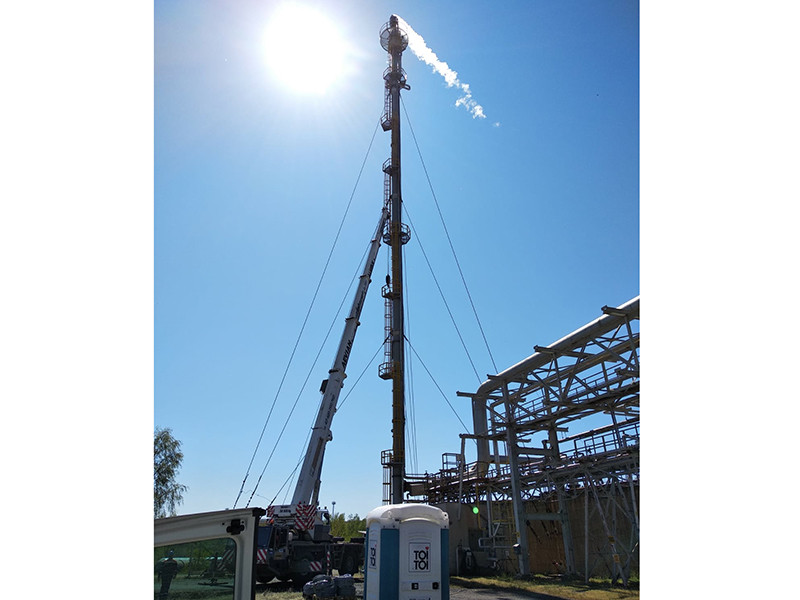

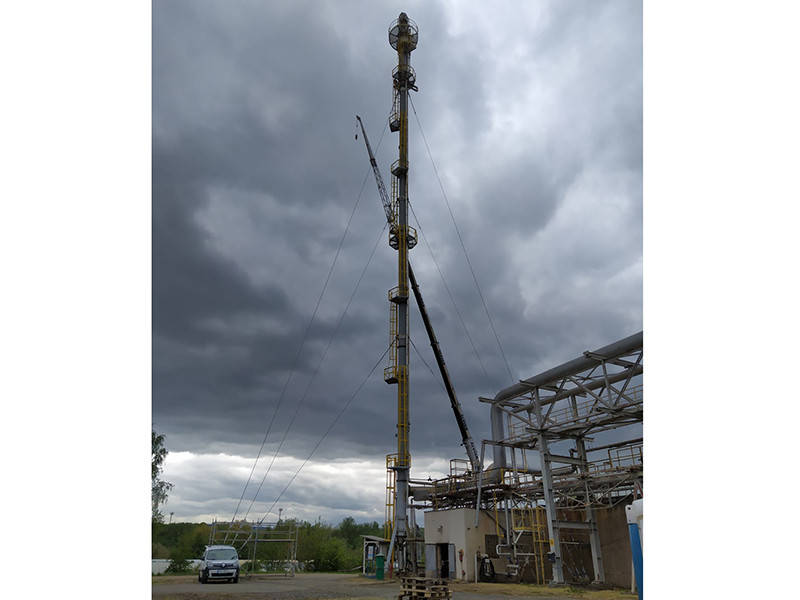

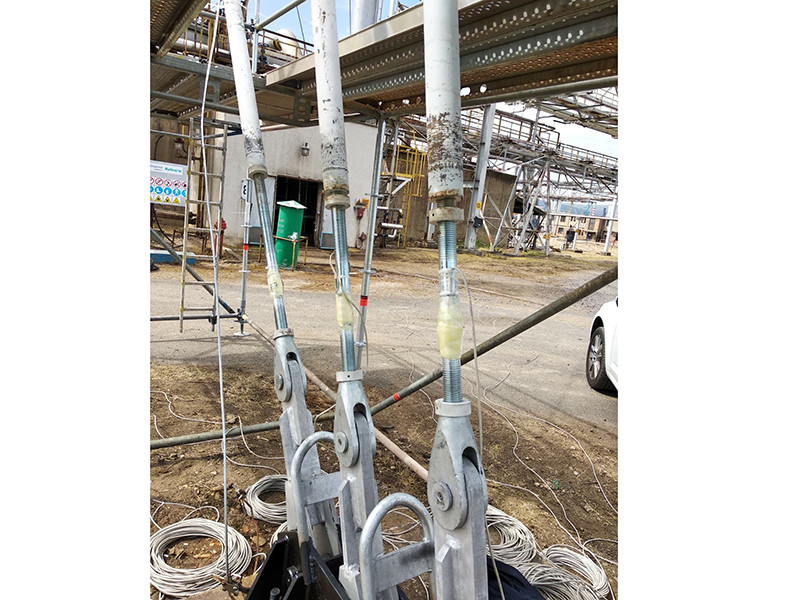

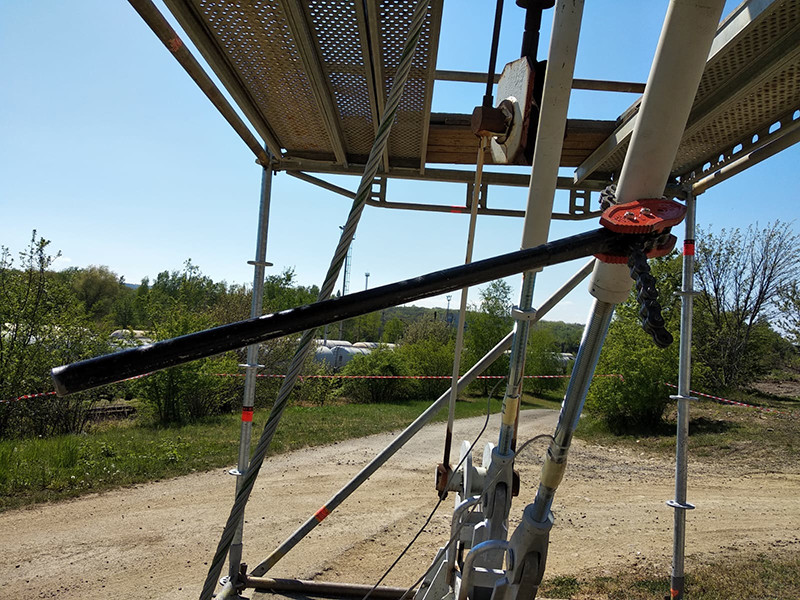

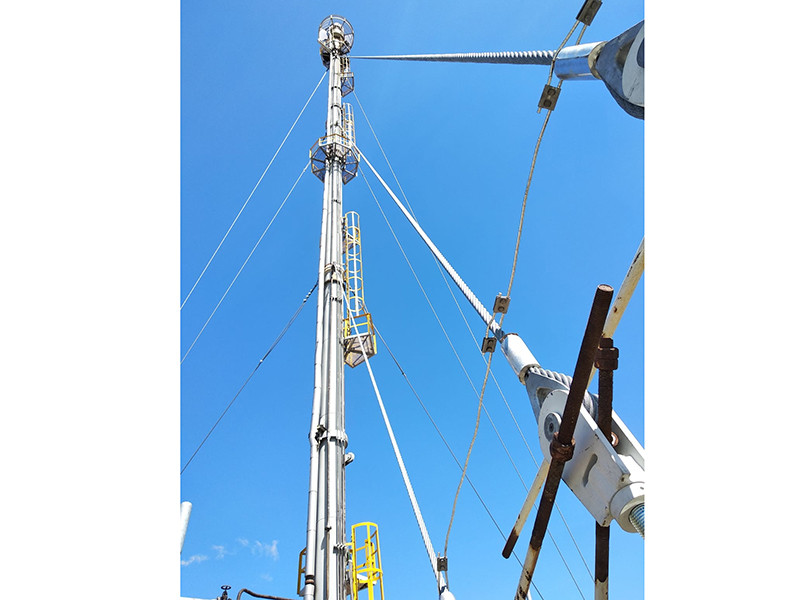

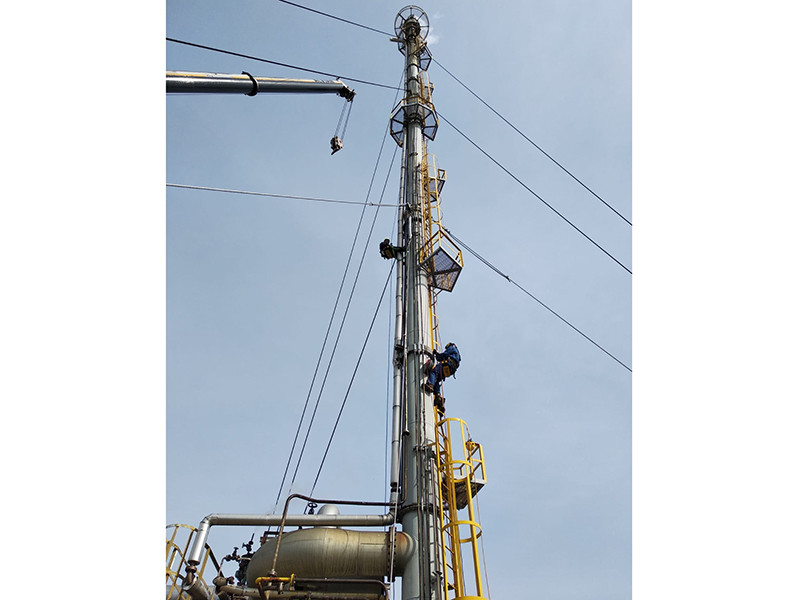

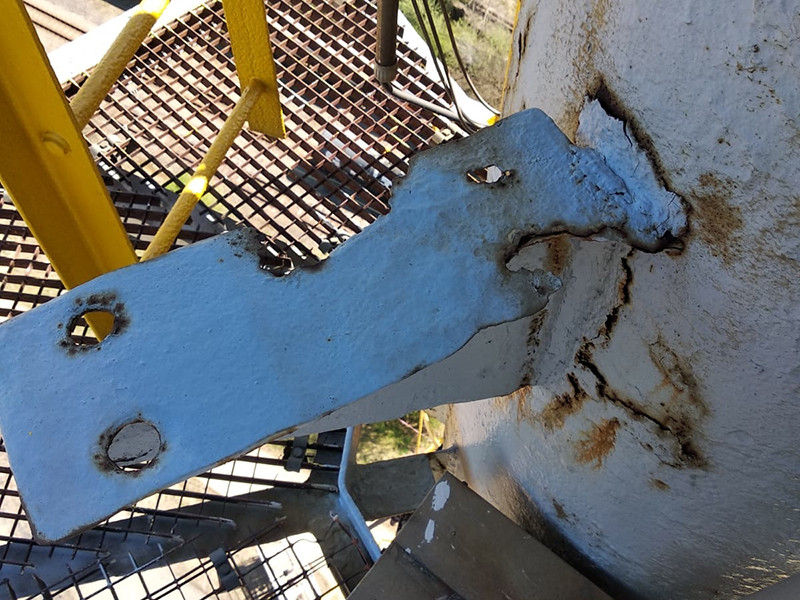

The 60 m high flare structure is anchored at 3 levels in 3 directions (+18.1 m; +33.0 m and 47.9 m). The six-strand steel guy wires with a diameter of 32 mm (top anchoring level) and 30 mm (middle and bottom levels). The guy wires of all three height levels are anchored into one footing at a distance of approx. 12 m from the base of the structure. The base of the mast is embedded into the concrete foundation. The shaft of the flare is formed by a 700 mm diameter pipe. The burner and molecular seal technology units are located in the top section. Process pipelines of various diameters and a cable tray are connected to the shank. The embedded anchorage is solved by means of a tripod. The flare is equipped with a ladder with protective cage and platforms.

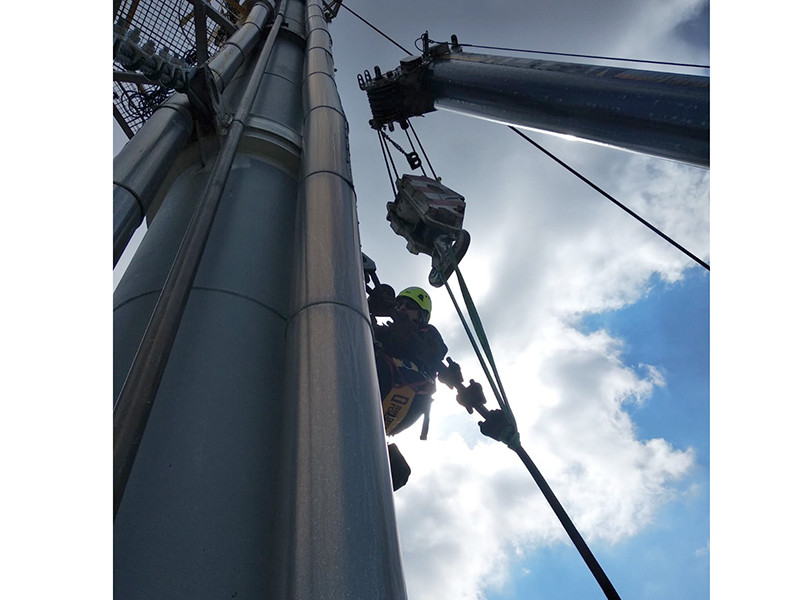

Study, detail design, Workshop drawings of the steel structure. Fabrication and erection of the steel structure for new guy wires, technological (pre-stressing) procedure strain gauge measurements, frequency measurements
