Telecommunication Constructions

Realization

Description

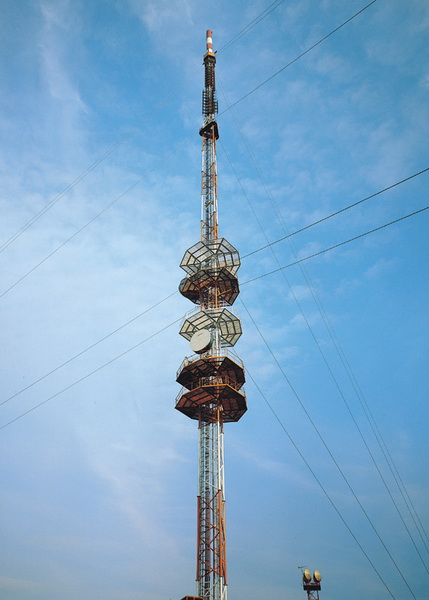

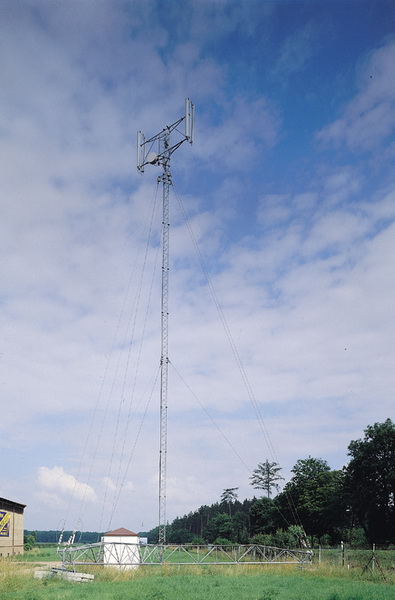

Guyed masts

Guyed masts serve mostly as TV and FM antenna carriers. Prismatic, triangular or square mast body is anchored in several levels by guy ropes with a possibility to measure anchoring forces. High masts can be equipped by lifts and special damping devices.

Special projects and reconstructions

We provide exchange of antenna cantilevers and guy ropes using special technologies. We solve problems of vibration of slender structures by design of damping devices.

MSC Plzeň

Structure built in 2001
Description: Regional centre, offices and lattice tower height of 68 m with look-out platform for visitors.

General delivery including all related engineering activities.

MOTOKOV

Structure built in 2000
Description: 35 m height lattice tower with a tubular extension situated on the top of 108 m height Motokov building.

Design, workshop documentation, engineering activities and supply of steel structure.



TOWER SYSTEMS

We offer design and supply of different steel towers according to customer request.

Look-Out Towers

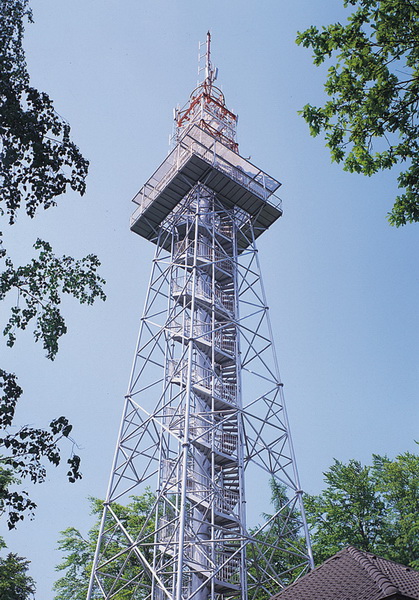

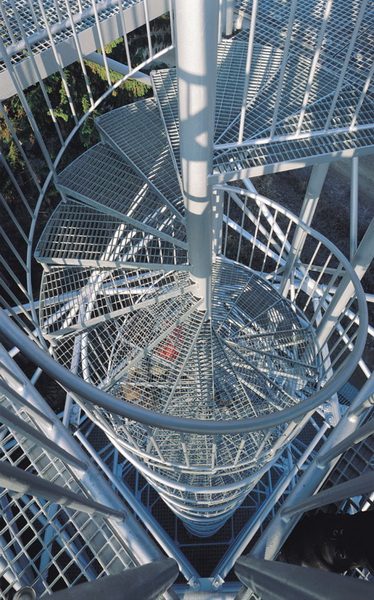

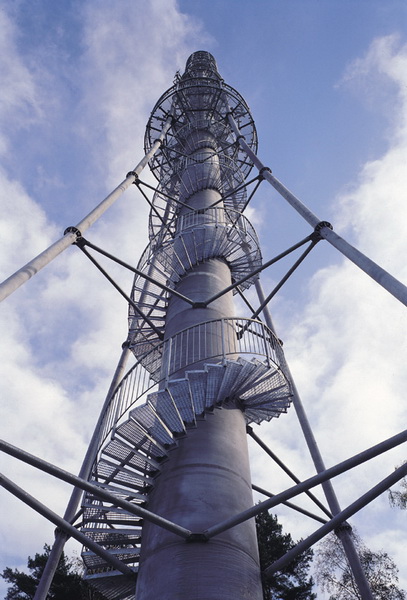

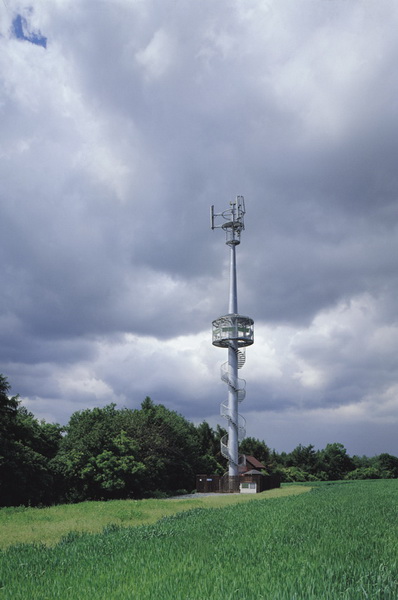

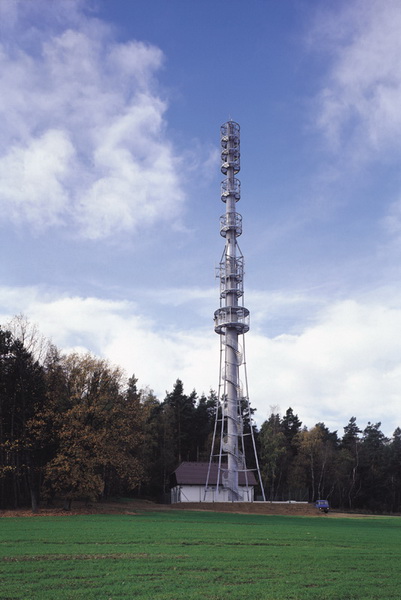

Design of look-out towers is usually based on the basic types of towers. The look-out platforms for visitors are positioned in different heights according to the requests of customers. EXR look-out tower is the tower EX with two opposite-direction staircases and outer gallery for visitors. EXRL look-out tower is the tower EX with spindle staircase and internal look-out platform. ERER look-out tower is the special tower ERK with spinal staircase and platform for visitors.

EG Tower System

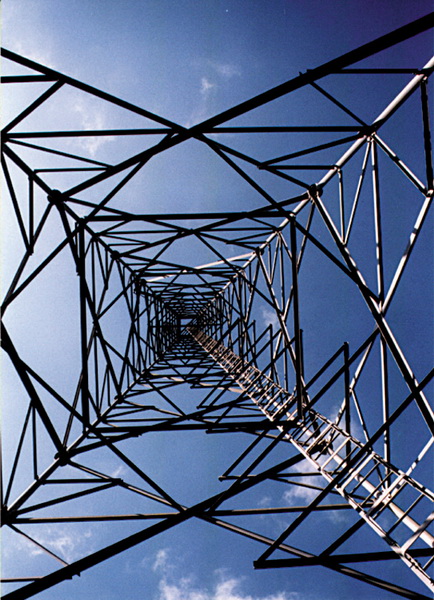

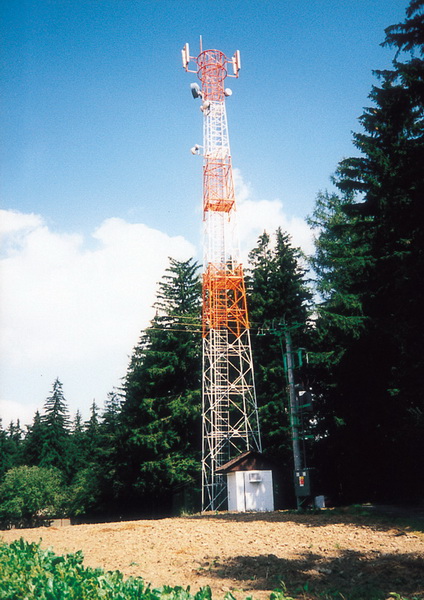

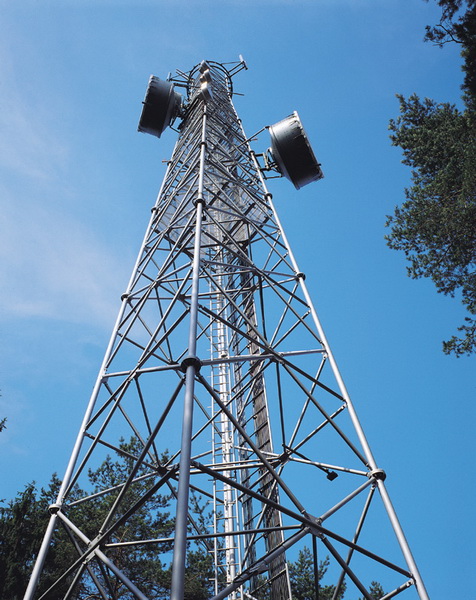

Lattice tower of square resp. triangular cross-section, suitable for light antenna loading, for example, as a connecting end point of mobile phone network. The EG tower system is designed for heights of 5 - 60 m scaling by 5 m. The lower part of the tower has truncated pyramid shape. The upper part is prismatic.

ERK Tower System

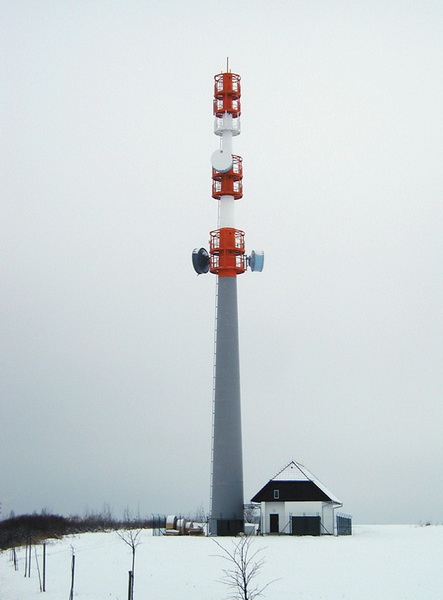

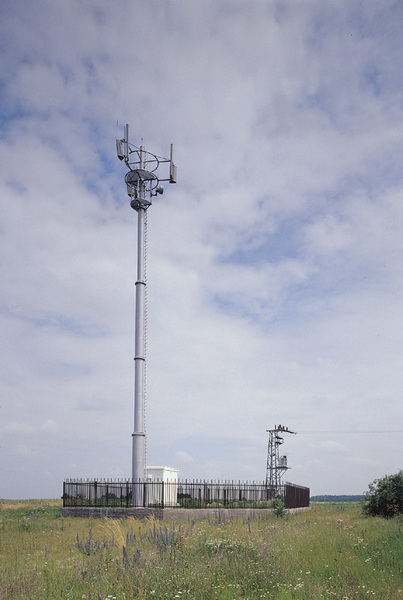

Tubular tower, suitable for light antenna loading. Particulary, it is applied from aesthetic and architectural reasons. The ERK tower system is designed for heights of 11 - 50 m. The tower body system is formed by a tube of conical shape with variable thickness of the wall connected with interval flanges.

ETN Tower System

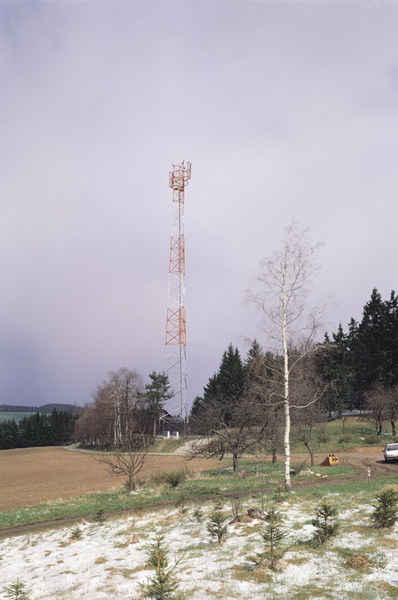

Lattice tower of square cross section, suitable for medium antenna loading. The ETN tower system is designed for heights of 30 - 60m, scaling by 5 m. The lower part of the tower has truncated pyramid shape. The upper prismatic part.

EX Tower System

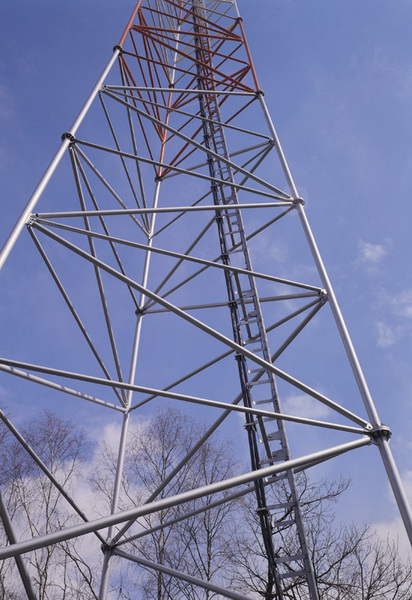

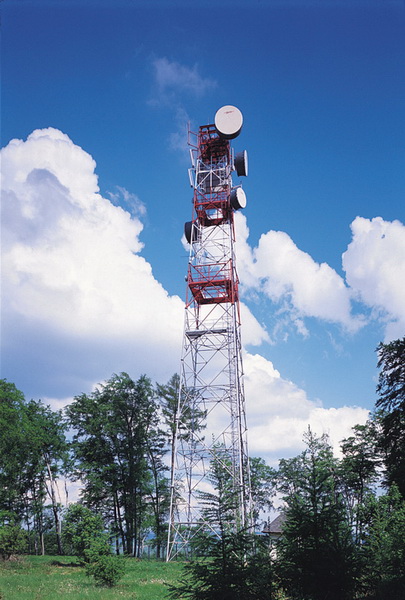

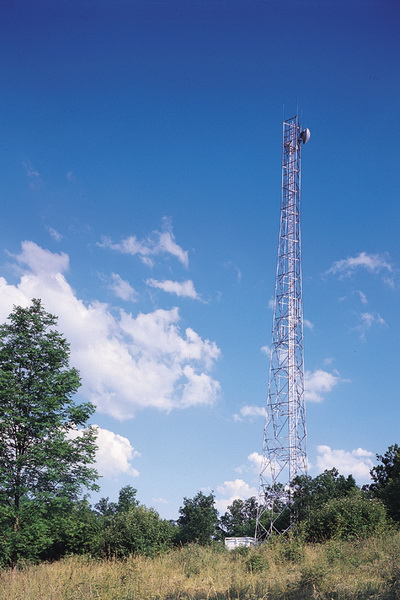

Lattice tower of square cross-section is suitable for heavy antenna loading. The EX tower system, designed for heights of 30 - 75 m scaling by 3 - 10 m. The lower part of the tower has a truncated pyramid shape. The upper prismatic part is 3 m wide. The top of towercan bear an antenna extension of width 1,2 or 1,5 m and hights 3 - 9 m.
